How Much Does a Steel Coil Weigh

Different weight brackets are generated for the same kind of generic steel coil depending on the production methods and materials composition:

Coils of hot-rolled steel: thicker gauges weighing between 15 to 30 tons and make them heavier. The processing of steel at high temperature (above 1,700°F) results in larger sizes, greater mass.

Cold-rolled steel coils: Precision and lightweight (5 to 15 tons). Their structure is still good, but at room temperature, they have thinner gauges installed.

Galvanized steel coils — similar to cold-rolled coils at 5 to 15 tons but adding weight from the zinc coating results in better corrosion resistance.

Stainless steel coils: Weighted between 5 and 25 tons, their higher density compared to carbon steel offsets variations in thickness and width.

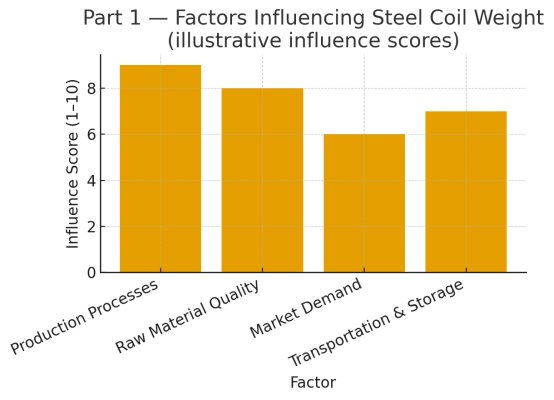

Factors Influencing the Weight of Steel Coils

There are many factors contributing to the weight of a steel coil from production processes, raw material quality, market demand, to transportation and storage environments.

1. Production Processes
   In steel rolling, the parameters such as its speed, temperature, and pressure greatly affect the dimensions and quality of the coils, which then in return have a bearing on their weight. For instance, high rolling speeds may lead to uneven thickness, resulting in deviations from the expected weight. Moreover, varying cooling methods after rolling can lead to different density of coils, which, in turn, affect the end weight.

2. Raw Material Quality
   Raw materials differ in terms of composition and properties (e.g., strength, ductility) by batch. Unstable performance of raw materials might require that processing conditions are modified at the production time, which could have an indirect impact on the thickness and weight of steel coils. As an example, a raw material with a higher strength might be subjected to varying rolling forces, and in this way, coil thickness and weight may be altered.

3. Market Demand
   It has been observed the market demand of steel coils for specific sizes and weights are such that production of these coils will need to be adjusted by manufacturers. In such cases when demand is high for specific weight groups, the manufacturers will optimize the production process to meet customer specifications and increase the competition in the market. Similarly, if the market prefers to load a lighter coil rather than a heavier one for convenient handling, then a manufacturer may reduce coil thickness or width to reach an acceptable weight.

4. Transportation and Storage Conditions
   Manufacturers consider the carrying capacity of transportation vehicles as well as warehouse capacity when determining coil weights that minimize transportation costs and storage space. For example, for long-distance transport coils, we could have lightweight coils to meet weight constraints and save fuel, and heavier ones for local storage to optimize storage efficiency.

Formulas for Calculating the Weight of Steel Coils

Weight of the steel coils can be calculated with the following exact formulas that depend on their geometric dimensions and density. These methods have been applied in common calculation.

General Formula

This calculation can be used to calculate the weight of a steel coil:

Weight (kg) = Volume (m³) × Density (kg/m³).

The density of steel is typically 7,850 kg/m³ (or 7.85 g/cm³), applicable to carbon steel and alloy steel. The volume is derived from the coil's outer diameter, inner diameter, and width.

Another more complex formula to calculate the weight of a steel coil is:

Weight (kg) = [(Outer Diameter² - Inner Diameter Variable) / 4] × π × Density × Width / 1,000,000. Where:

· Outer Diameter is in mm. · Inner Diameter variable depends on inner diameter size (258,064: inner diameter = 508 mm). · Width is in mm (millimeters). · π is roughly 3.14. · Density: 7.85 g/cm³ (or 7,850 kg/m³).

Example Calculation:
For instance, a steel coil with an outer diameter of 1,080 mm, an inner diameter of 508 mm and a width of 914 mm. Weight = [(1,080² - 258,064) / 4] × 3.14 × 7.85 × 914 / 1,000,000 ≈ 5,116 kg (or 5.116 tons).

Simple Assessments for certain cases. In other cases, easy formulas can be employed for estimation speed up. For example, when determining the diameter of a steel coil in terms of its weight and width, the first step is to calculate the diameter of a steel coil by its weight and width:

Diameter (mm) = √[(Weight (kg) × 1,622,780) / (Width (mm) × Inner Diameter Variable)].

The formula is useful for checking if many coils can be stacked next to each other when being transported or when storing stuff.

Global Standard Weights of Steel Coils in Steel market. Standard weight however, the standard weight of steel coils does depend largely on the countries and production capability and market demand and transportation conditions. Yet, some of these international weight ranges are common to save on trade and logistics.

Common Weight Ranges. Usually, the weight of a single steel coil is ten to thirty tons, some coils being a lot heavier. Generally, the weight of the coil which depends on how heavy it is must be less than the amount of load to be moved (10-15 tons) for application where the system should be easily worked & manipulated. Larger coils (20-30 tons) are more suitable for larger infrastructure projects where less transport trips are needed as well as a process of handling which lowers time and cost.

Regional Variations.
· Asia – In countries such as China, Japan, and South Korea, steel coils are commonly made in a wide variety of weights to satisfy different markets. For instance, Chinese makers can produce coils of a few tons, to more than 30 tons, depending on the customer’s requirements.
· Europe: European manufacturers are relatively conservative in Europe regarding standards; standard weight around the coils in Europe based on normal weights is generally the standard which the European manufacturers apply and average weights from these types of weights are 15-25 tons respectively. Partly due to regulation at transport level because of strict transportation regulations, in addition the need for the efficiency of logistics is also an important factor from this.
· North America: The steel coil generally has a weight in the form of a heavy load in the US and Canada which is as much as 25 tons, sometimes more than 20 tons high. The reason for this can be attributed to the large distances in geography and the need to reduce transportation cost for a weight per unit.
