RAL9005 0.17mm Black PPGL Sandy Matt Coil for Durable Corrugated Roofing Sheets

Prepainted galvalume steel coil used galvalume/aluzinc (AZ20 -275gsm) steel coils as the basic raw materail. After pretreatment (the surface of the basic raw materail is cleaned to remove impurities, degreasing, and undergoes composite oxidation and passivation treatment), the surface is coated with PE. SMP, PVDF paint is then baked and solidified. It is more suitable for applications in corrosive and coastal areas.

BOMIS is one of professional prepainted steel coil supplier factory in China Shandong province . We supply all RAL colors and special patterns can be made, such as wood grain, flower print, camouflage, and brick. We manufacture thickness is 0.11-2.0 mm, width is 600-1250 mm, color painting includes PE, SMP, and PVDF to meet customer needs. We offer commercial steel (CS Types A, B, and C) and structural steel (SS). We use Polyester, Silicone Modified Polyester, Polyvinylidene Difluoride paints for customers to choose from.

Coating type: polyester resin (PE), silicone-modified polyester resin (SMP), polyvinylidene fluoride (PVDF) coating performance characteristics and uses: PE board board surface and cut corrosion resistance is high, the life is generally 5-7 months, decorative in general, suitable for steel building roofs, walls and structural components; SMP coating of the color plate corrosion resistance is better than ordinary polyester products, cut corrosion resistance is high, coating life of about 10 months, decorative in general, the coating life of about 10 months, decorative in general, the color plate is better than the ordinary polyester products, cut corrosion resistance is high, the coating life of about 10 months, decorative in general, the coating life of about 10 months. SMP coated color plate has better corrosion resistance than common polyester products, high corrosion resistance against cutting, high coating life time, and general decorative properties, applicable to roof, wall and structural parts for structural buildings, steel windows and automobiles; PVDF color plate has excellent corrosion resistance, coating life time of 15-20 months, and general decorative properties, applicable to roof, wall and structural parts for structural buildings.

We work with AkzoNobel ,Nippon, Wanbo , Ougeman , Aoboli. We are the official cooperative factory of AkzoNobel.. According to different quality requirements of clients, we provide paint warranty of 10 years and 15 years respectively, No peel off, No Craze, No crack.and issue a warranty letter from AkzoNobel.

Thickness (mm)	0.11-2.0 mm (±0.02 mm)
Width (mm)	600-1250 mm (±2 mm)
Aluzinc coating	az 20-150 g/sm
Front color coating	Prime : 5 μm + top coating : 7–25 μm
Back color coating	5 –15 μm
Hardness	CQ/ FH/ G 300-G 550 /HRB 60-90 (Soft---full hard)
Coil Diameter (mm)	508,610.
Coil Weight(T)	3-5 tons or As your requirement.

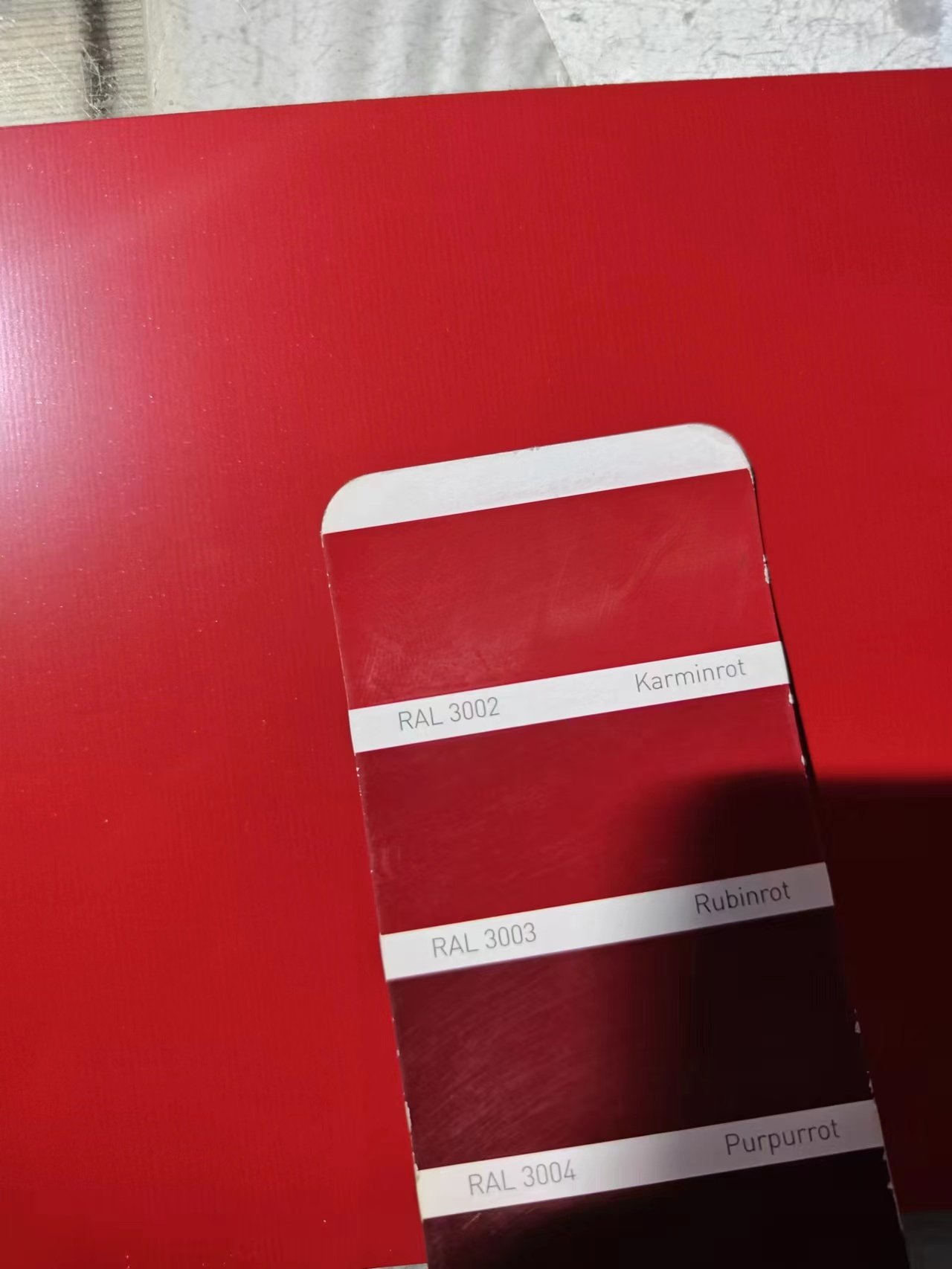

Color	As RAL or as customer’s sample.
Paint	PE,SMP.HDP,PVDF.
Standard	GB/T 12754-2019; ASTM A 755; EN 10169; JIS G 3312
Steel Grade	CGCC TDC51D+Z
Certification	ISO 9001, BV, SGS
Quality control	commercial and structural quality. Anti-MEK Wiping more than 100 times
Surface Treatment	With plastic film , Chromated, , Matt, Decorate, Sand surface, Highlight.
Color Stone-carving Sheet	It looks like stone carving, full of sense of quality.
Static-resistance Sheet	With resistance on the surface ( 107-108Ω ), it contains good performance of static-resistance and is applied in the fields of electricity, sanitation and food.
Heat-resistance Sheet	It can reduce surface temperature by 15-20℃. It's a kind of good construction material for roof making.
Chameleon Sheet	It takes on different colors from different angles and bring a band new sense to the construction- one material, two colors.
Flossy Sheet	Good touch quality makes you feel touch floss.
Texture Sheet	It features special texture and shines in the sun.
Matt /Wrinkle Sheet	It features solid effect and good quality of anti-scraping, mainly applied in market of volume curtain.
Package	1. Galvalume metal & waterproof paper around the coil. 2. Both ends are covered with disks. 3. Inner and outer protective steel rings on edges. 4. 4*5 metal strapping bands and circumferential bands to make it stable.
Application	Our steel products are mainly applies in some professions, such as Structural use, roofing, corrugated roofing, commercial use, household appliance, industry... 1. Construction: (Outside) workshop, agricultural warehouse, residential precast unit, corrugated roof, wall, rainwater drainage pipe, terrace, retailer booth, roller shutter door (Inside) door, doorcase, light steel roof structure, folding screen, ceiling, elevator, stairway, vent gutter 2. Household appliance: Refrigerator, washer, switch cabinet, instrument cabinet, air conditioning, micro-wave oven, bread maker 3. Furniture: Central heating slice, lampshade, chifforobe, desk, bed, locker, bookshelf 4. Carrying trade: Exterior decoration of auto and train, clapboard, container, isolation lairage, isolationcoil 5. Others: Writing panel, garbage can, billboard, timekeeper, typewriter, instrument panel, weight sensor, photographic equipment
Port of Shipment	Qingdao Port, or Tianjin Xingang port , China.
Date of Delivery	Within 15-20 days after we receive deposit or L/C at sight.
Payment	L/C at sight or T/T.
Transportation	Container / bulk ship / Train
Supply Ability	50,000MT per month.

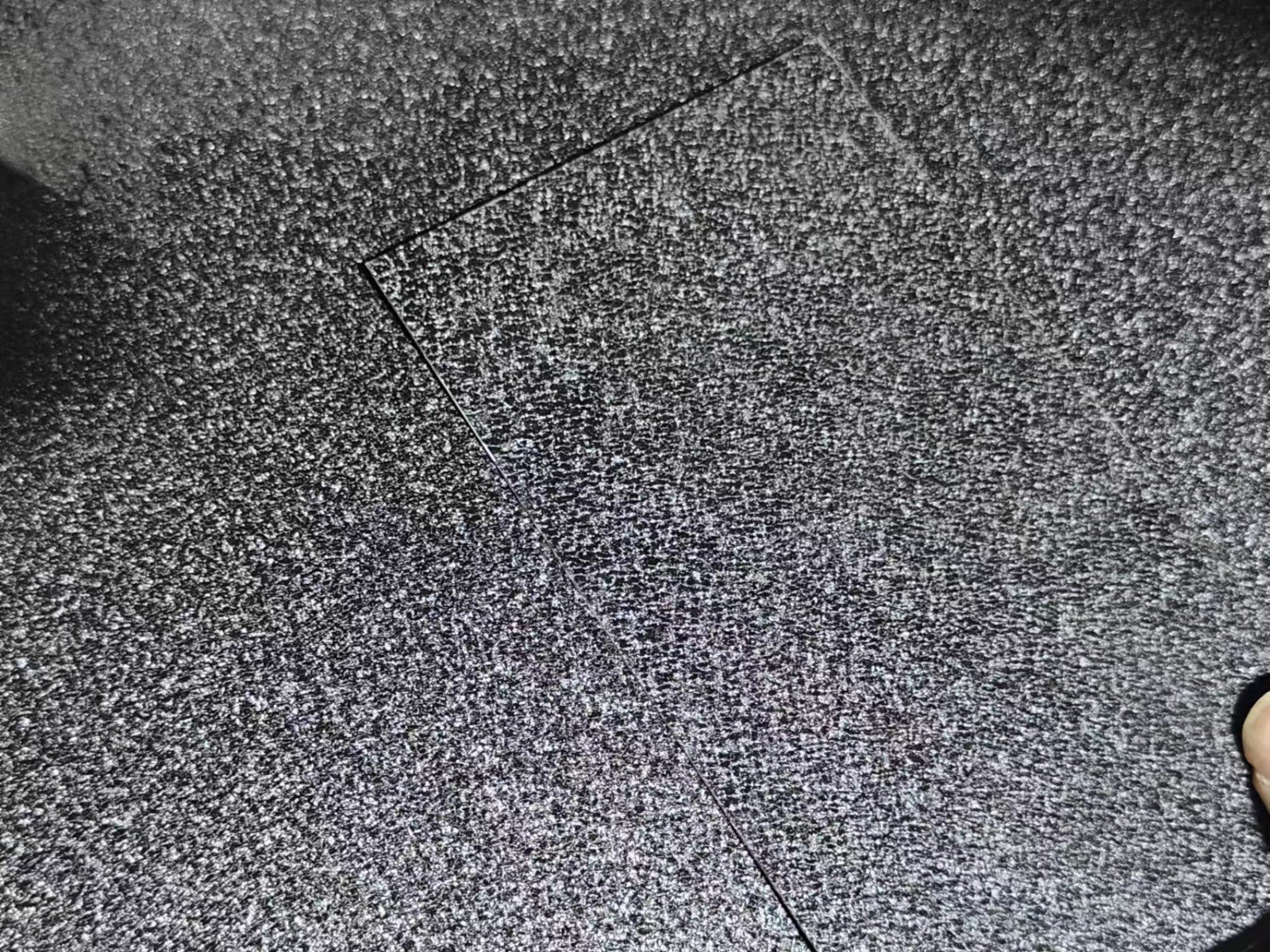

PPGL Coil With SANDY MATT SURFACE For Bulidling Materail
