Steel coating sheet manufacturer

The pre-painted galvanized steel coils has the strength and shape-exchanging performance of the steel plate, at the same time has the good adornment and anti-erode performance of organism material. Coating adhesive force of color-coated sheet is strong, which keeps the color and luster novel for a long time. The color-coated sheet is widely used in such fields as architecture, household appliances, furniture, communal facilities and communications and transportation, etc.

Inquiry Now

Add to Card

Application

BOMIS is one of professional prepainted steel coil supplier factory in China Shandong province . We supply all RAL colors and special patterns can be made, such as wood grain, flower print, camouflage, and brick. We manufacture thickness is 0.1-2.0 mm, width is 600-1250 mm, color painting includes PE, SMP, and PVDF to meet customer needs.

We offer commercial steel (CS Types A, B, and C) and structural steel (SS). We use Polyester, Silicone Modified Polyester, Polyvinylidene Difluoride paints for customers to choose from.

The main production processes of the color coated coils includes pre-treatment process, coating process, and baking process.

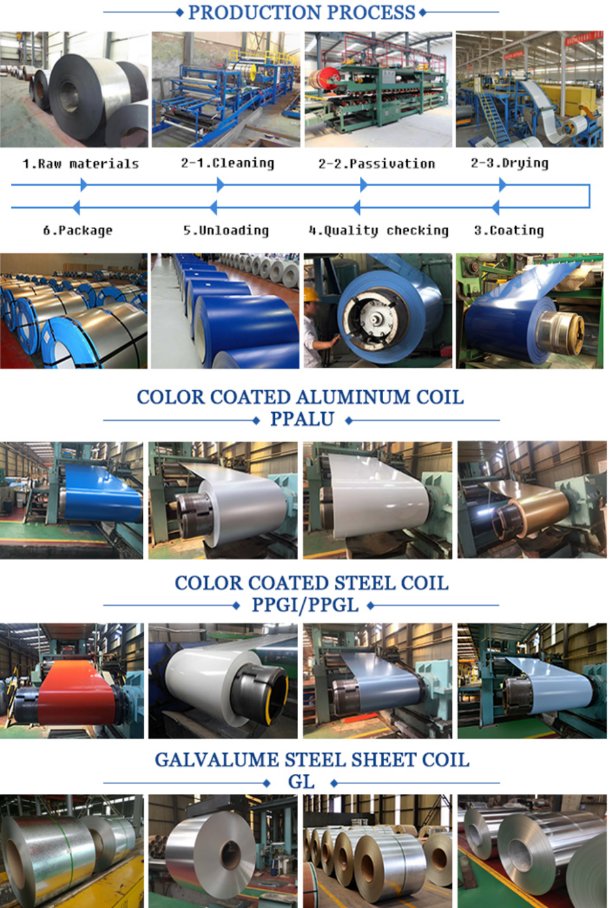

Production Process: Uncoiling-degreasing-washing-passivation-drying-cooling-painting-drying and curing-cooling

Pre painted Galvanized Steel Coils Structure

Prepainted steel coil coatings can be divided into three categories: primer, topcoat, and backcoat. Common ones are 2/2 and 2/1 coating structures.

The back side of the 2/1 can be coated with a layer of primer or only a layer of backcoat. It is mainly used for sandwich panels, which require the coating to have good bonding and foaming properties. The 2/2 uses a two-coat system of primer and backcoat, and is used as a single steel sheet.

Top Finish Coating (PE/HDP/PVDF, etc.), When the thickness is above 20um, it can effectively prevent the damage of ultraviolet rays and harsh environments to the coating.

The main uses of pre-painted galvanized steel coils are home appliances and construction.

Home appliance uses are mainly side door panels for refrigerators, and shells for air conditioners, freezers, and washing machines. The construction field is more widely used than home appliances.

PPGI coil for construction is used for roofing, guttering, sandwich panels, industrial building facades, cold storage panels, and rolling doors. Our steel products are mainly applies in some professions, such as constructions. For the constructions, it mainly used as roofs of some industrial, residential construction to prevent from corrosion. For the light industry, it used to produce outer cover of electrical appliance, chimney, kitchen utensil and corrosion-proved parts of automobiles. And it is also used as storage and transport in farming, animal husbandry, fishery area.

product specifications

Product name	PREPAINTED STEEL COIL
Thickness (mm)	0.10-2.0 mm (±0.02 mm)
Width (mm)	600-1250 mm (±2 mm)
Zinc coating	zinc 20-150 g/sm
Front color coating	Prime : 5 μm + top coating : 7–25 μm
Back color coating	5 –15 μm
Hardness	CQ/ FH/ G 300-G 550 /HRB 60-90 (Soft---full hard)
Coil Diameter (mm)	508,610.
Coil Weight(T)	3-5 tons or As your requirement.
Color	As RAL or as customer’s sample.
Paint	PE,SMP.HDP,PVDF.
Standard	GB/T 12754-2019; ASTM A 755; EN 10169; JIS G 3312
Steel Grade	CGCC TDC51D+Z
Certification	ISO 9001, BV, SGS
Quality control	commercial and structural quality. Anti-MEK Wiping more than 100 times
Surface Treatment	With plastic film , Chromated, , Matt, Decorate, Sand surface, Highlight.
Color Stone-carving Sheet	It looks like stone carving, full of sense of quality.
Static-resistance Sheet	With resistance on the surface ( 107-108Ω ), it contains good performance of static-resistance and is applied in the fields of electricity, sanitation and food.
Heat-resistance Sheet	It can reduce surface temperature by 15-20℃. It's a kind of good construction material for roof making.
Chameleon Sheet	It takes on different colors from different angles and bring a band new sense to the construction- one material, two colors.
Flossy Sheet	Good touch quality makes you feel touch floss.
Texture Sheet	It features special texture and shines in the sun.
Matt /Wrinkle Sheet	It features solid effect and good quality of anti-scraping, mainly applied in market of volume curtain.
Package	1. Galvanized metal & waterproof paper around the coil. 2. Both ends are covered with disks. 3. Inner and outer protective steel rings on edges. 4. 4*5 metal strapping bands and circumferential bands to make it stable.
Application	Our steel products are mainly applies in some professions, such as Structural use, roofing, corrugated roofing, commercial use, household appliance, industry... 1. Construction: (Outside) workshop, agricultural warehouse, residential precast unit, corrugated roof, wall, rainwater drainage pipe, terrace, retailer booth, roller shutter door (Inside) door, doorcase, light steel roof structure, folding screen, ceiling, elevator, stairway, vent gutter 2. Household appliance: Refrigerator, washer, switch cabinet, instrument cabinet, air conditioning, micro-wave oven, bread maker 3. Furniture: Central heating slice, lampshade, chifforobe, desk, bed, locker, bookshelf 4. Carrying trade: Exterior decoration of auto and train, clapboard, container, isolation lairage, isolation board 5. Others: Writing panel, garbage can, billboard, timekeeper, typewriter, instrument panel, weight sensor, photographic equipment
Port of Shipment	Qingdao Port, or Tianjin Xingang port , China.
Date of Delivery	Within 15-20 days after we receive deposit or L/C at sight.
Payment	L/C at sight or T/T.
Transportation	Container / bulk ship / Train
Supply Ability	50,000MT per month.
